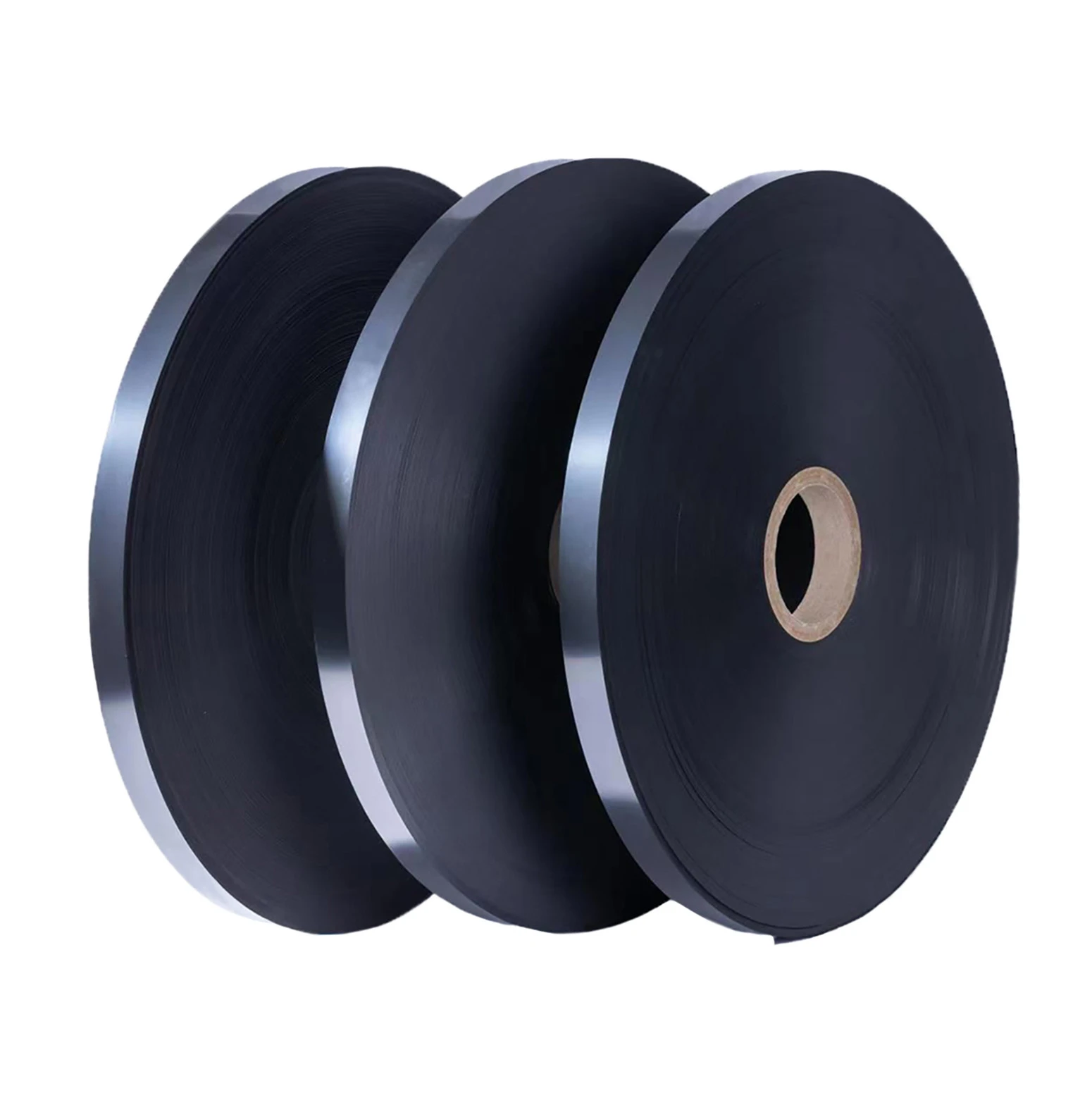

Polystyrene Thermo Sheet , Thermo Cutting Sheet For Carrier Tape

PS thermoforming sheet is a type plastic that has been designed to have electrical conductivity with carbon black.

The carrier tape material is based on permenantly antistatic material.

It has stable surface resistance in 10e6-10e8.

It is mainly used in electrical components packaging for SMT process, also used in manufactoring line in order to prevent electronic components from static electricity influence.

Specification:

1. Color: black

2. Thickness: 0.2mm~2.5mm (Tolerance: ± 0.02mm)

3. 8mm,16mm, 24mm, 32mm, 44mm, 56mm, 72mm, 88mm, 108mm (Tolerance: ± 0.1mm)

4. Length: 400m or as reqeust

5. Density: 1.06g/cm3

6. Surface resistivity: 10e6~10e8 ohms

7. Certificates: ISO9001, REACH, CTI RoHS

Characteristics:

1. 3 layers co-extrusion permenantly antistatic carrier tape material, with high endurance.

2.No dependency on humidity.

3.Stable surface resistivity.

4.Excellent dimensional stability for deep-drawing or precision forming.

5.Good compatibility with different kinds of cover tape.

6.Less Burrs and fines.

7.Excellent bending strength

Applications:

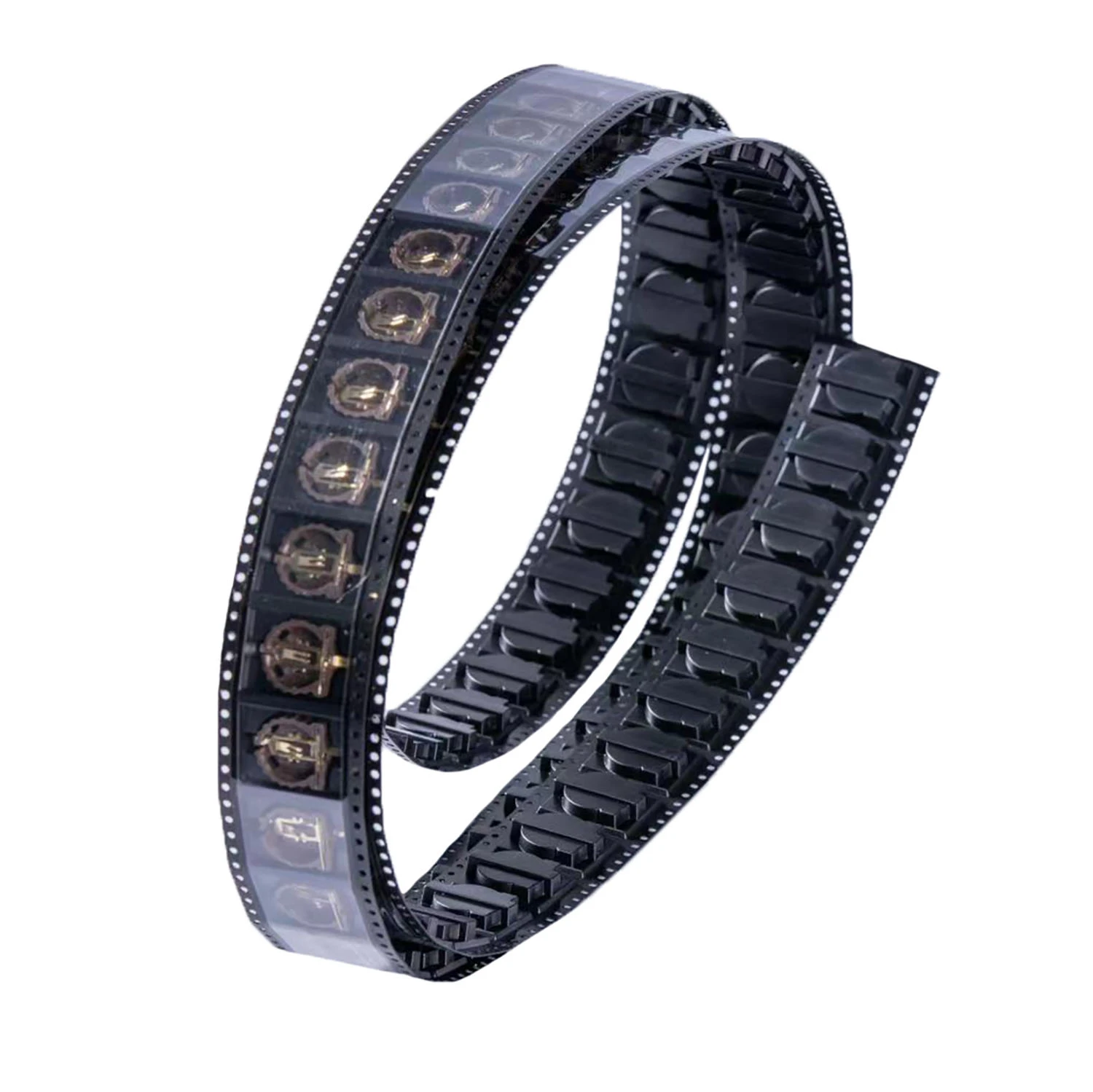

With Sheet to Form Carrier Tape for Carrying the Smaller Electronic Components such as IC Component, Connector, Resistor, Capacitor & Inductor
